CHAPTER 7 | Principles

Axis

The axis is established by a line connected by two points in space and they can be formed in a symmetrical manner.

The city is located on an axis to determine the north and south axis.

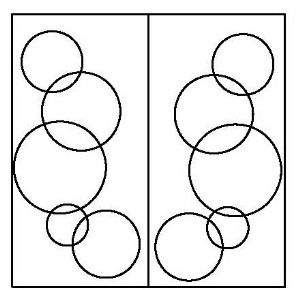

Symmetry

It is the arrangement and distribution of forms and spaces on eitherside of a divided line that balance.

The buildings architecture is mimicked on both sides of the axis.

Hierarchy

The size, shape, or placement of form and space relative to another form or space.

The floor plan below shows the hierarchy of the circled library by being the largest area and the only rectilinear form in plan.

Datum

The measurement or organization of a pattern of forms or spaces on a continuous line, plane, or volume.

This is arenderings of eco-homes by Ushida-Findlay Architects, to be built in Preston, UK. Datum is apparent by the green roof and surrounding green lawn.

Rhythm & Repetition

The same or modified form repeated or altered in movement.

In San Francisco, One Rincon Hill portrays repeating pattern of rectangular shapes which are bounded by a larger rectangle of the entire structure.

Transformation

Manipulations to a concept, structure, or organization set by certain sets of conditions without losing the original identity.

The Buddhist temple of Borobudur in Java, Indonesia displays transformation of pattern and form without losing identity. The temple was designed to provide visiting pilgrims an The design is to let the viewer experience of ascending up through forms emulating desire and formless worlds.

---
